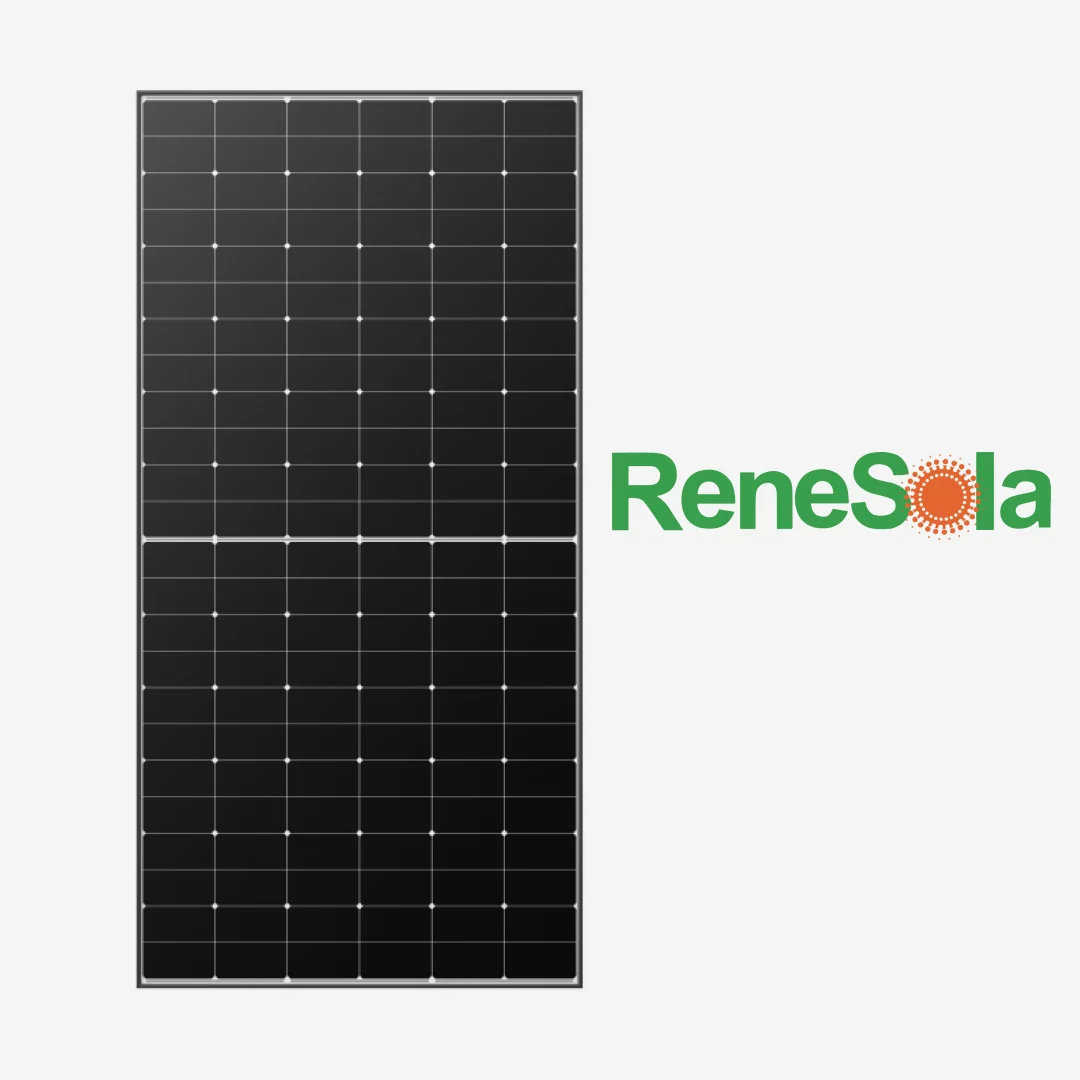

Renesola 585 W N-Type Topcon Double Glass Solar Panel
₨ 20,767
Renesola 585W N-Type TOPCon Bifacial Double Glass Solar Panel
The Renesola 585W N-Type TOPCon Solar Panel combines high-efficiency N-Type monocrystalline technology with a bifacial double-glass design for reliable solar energy generation. With up to 22.65% module efficiency, 144 half-cut cells, and durable construction, it is suitable for distributed and large-scale solar projects.
Key Features:
- 585W high power output
- N-Type TOPCon monocrystalline technology
- Up to 22.65% module efficiency
- Bifacial double-glass design for additional rear-side energy generation
- 144 half-cut cells in a 6 × 24 configuration
- Positive power tolerance of 0 to +5W
- Ultra-hydrophilic self-cleaning coating
- High mechanical load capacity of 5400 Pa positive and 2400 Pa negative
- IP68-rated junction box
- 1500V DC maximum system voltage
Technical Specifications:
| Specification | Details |
|---|---|
| Model | RS6-585NBG-E3 |
| Type | Bifacial Module with Dual Glass |
| Maximum Power | 585W |
| Cell Type | Mono N-Type |
| Number of Cells | 144 (6 × 24) Half-Cut |
| Module Efficiency | 22.65% |
| Voc | 53.21V |
| Isc | 14.01A |
| Vmp | 44.02V |
| Imp | 13.29A |
| Power Tolerance | 0 to +5W |
| Dimensions | 2278 × 1134 × 30 mm |
| Weight | 31.7 kg |
| Front / Back Glass | 2mm + 2mm High-Transmission, Low-Iron, Semi-Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Output Cable | 4mm², 300mm, Customizable |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Fire Performance | IEC Class C |
| Mechanical Load | 5400 Pa Positive / 2400 Pa Negative |
Why Choose Renesola 585W TOPCon?
The Renesola 585W offers a strong combination of N-Type TOPCon technology, bifacial energy generation, high efficiency, and durable double-glass construction. Its self-cleaning coating and robust design also make it suitable for demanding outdoor solar installations.
Ideal For:
Ground-mounted solar power plants, distributed solar projects, commercial installations, and large-scale solar systems.
