Aiko Stellar 665 W N-Type Topcon Double Glass Solar Panel
₨ 28,162

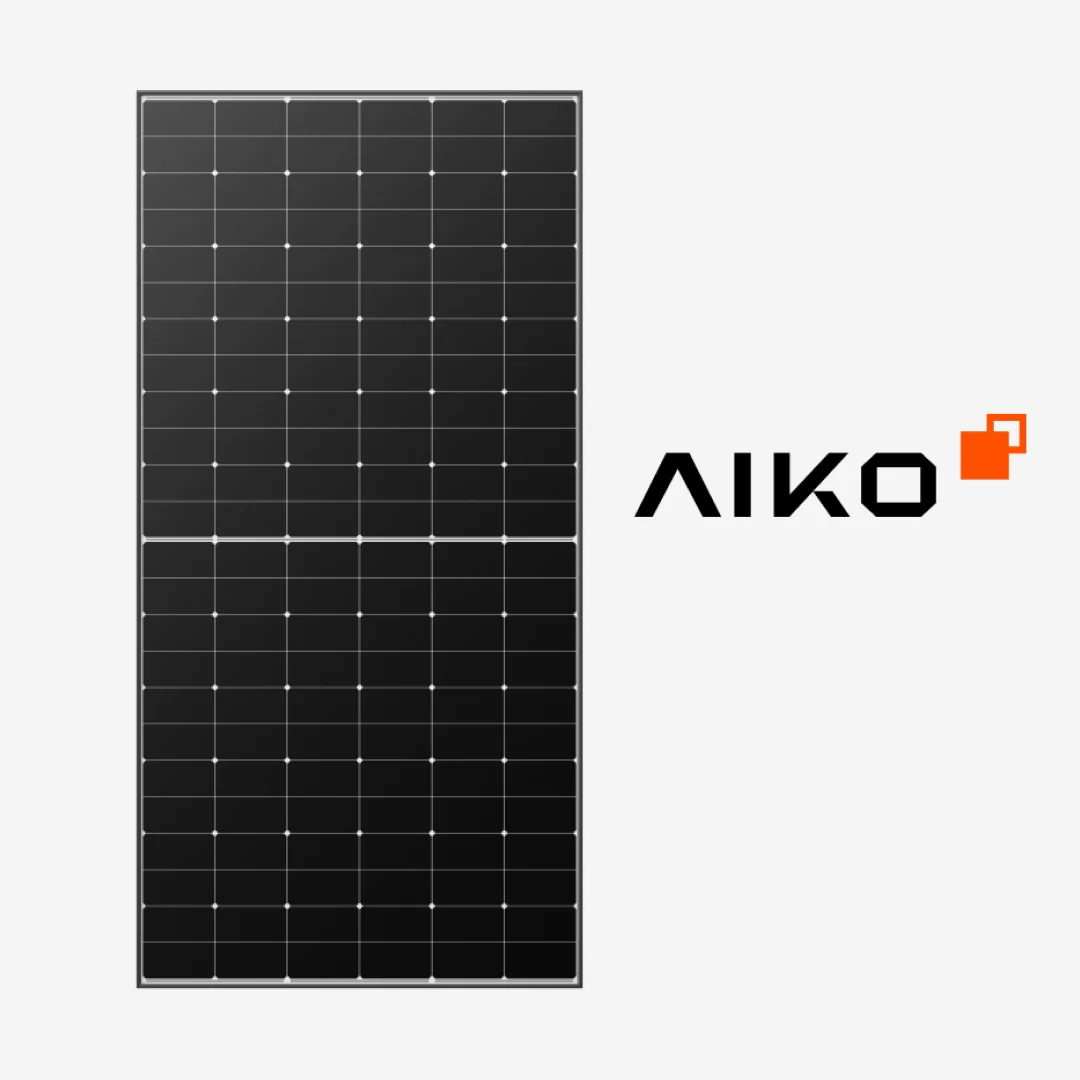

AIKO 665W Stellar 3N+ N-Type ABC Bifacial Solar Panel
The AIKO Stellar 3N+ 665W is a high-efficiency N-Type ABC (All Back Contact) bifacial solar panel designed for residential, commercial, industrial, and utility-scale solar installations. With 24.6% efficiency, advanced ABC technology, and durable dual-glass construction, it delivers strong energy generation and reliable long-term performance.
Key Features
- 665W high power output
- Advanced N-Type ABC (All Back Contact) technology
- 24.6% module efficiency
- Bifacial dual-glass design
- 144 cells in a 6 × 24 configuration
- Excellent temperature performance with -0.26%/°C Pmax coefficient
- Strong partial-shading performance
- Designed for improved resistance to micro-cracks
- IP68 junction box with 3 bypass diodes
- 1500V DC maximum system voltage
- 5400 Pa front and 2400 Pa rear static load
- IEC Class A fire rating
Technical Specifications
| Specification | Details |
|---|---|
| Power Output | 665W |
| Cell Technology | N-Type ABC (All Back Contact) |
| Cell Configuration | 144 Cells (6 × 24) |
| Module Type | Bifacial Dual Glass |
| Module Efficiency | 24.6% |
| Power Tolerance | 0 to +3% |
| Glass | 2.0 + 2.0mm Coated Semi-Tempered Glass |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.2 kg ±3% |
| Junction Box | IP68, 3 Bypass Diodes |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Operating Temperature | -40°C to +70°C |
| Front Static Load | 5400 Pa |
| Rear Static Load | 2400 Pa |
| Fire Rating | IEC Class A |
Performance & Warranty
The AIKO Stellar 3N+ 665W delivers excellent performance with a 24.6% module efficiency and a Pmax temperature coefficient of -0.26%/°C. Its N-Type ABC technology and bifacial design help maximize energy generation across different operating conditions.
The panel has a first-year degradation of ≤1% and an annual degradation rate of ≤0.35% from years 2 to 30. It is backed by a 15-year product warranty and 30-year performance warranty.
Why Choose AIKO Stellar 3N+ 665W?
With high efficiency, advanced ABC cell technology, bifacial energy generation, and durable dual-glass construction, the AIKO Stellar 3N+ 665W is a strong choice for solar projects where high power output and long-term reliability are important.
Ideal For
High-power residential systems, commercial and industrial solar projects, utility-scale installations, and large solar power plants.
