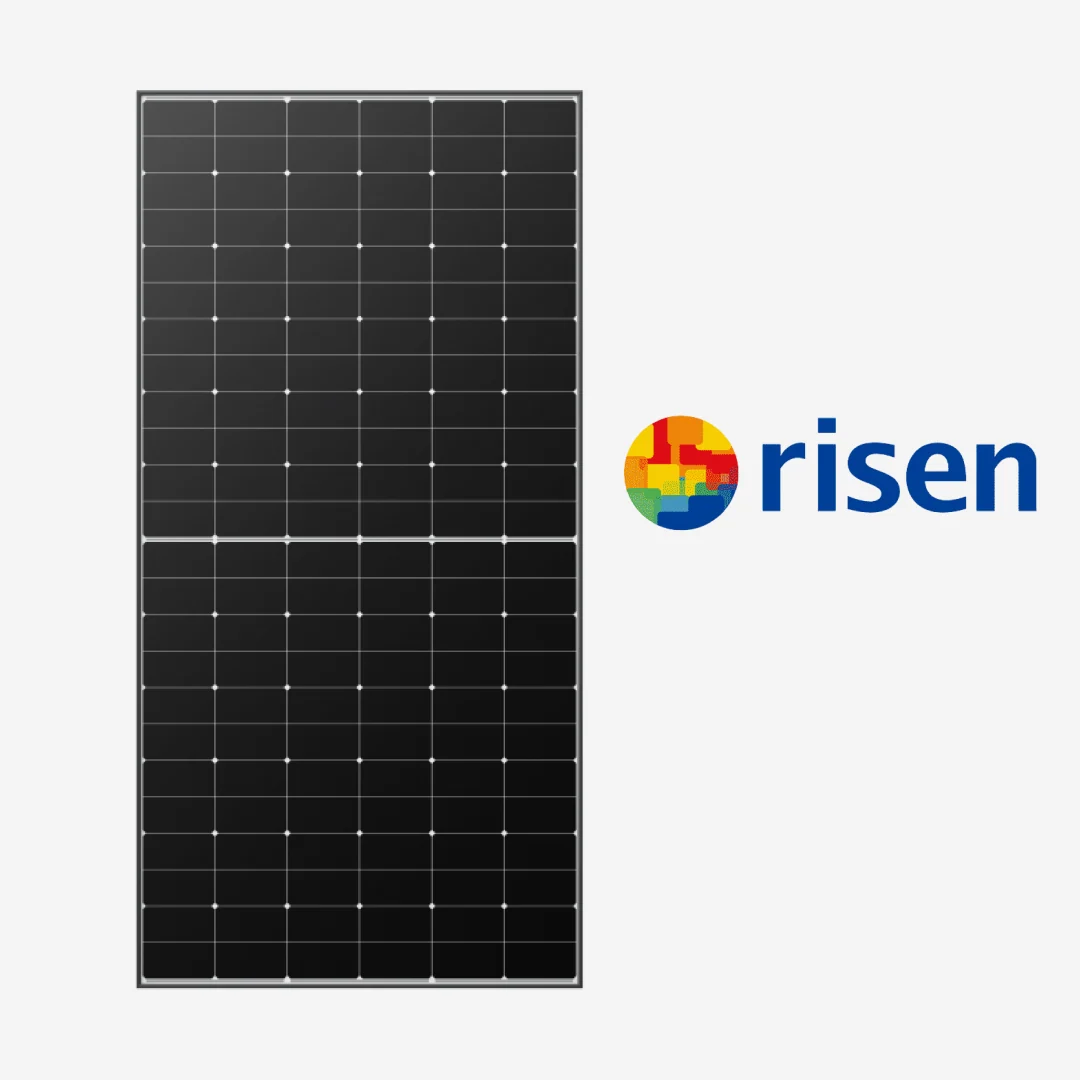

Risen HJT 740 W N-Type Topcon Double Glass Solar Panel
₨ 30,525
Risen Hyper-ion 740W N-Type HJT Bifacial Solar Panel
The Risen Hyper-ion 740W is a high-performance N-Type HJT bifacial solar panel designed for commercial, industrial, and utility-scale solar systems. Its advanced HJT technology, high efficiency, and dual-glass construction provide strong energy generation and reliable long-term performance.
Key Features
- 740W high power output
- N-Type HJT (Heterojunction) cell technology
- 23.8% module efficiency
- Bifacial design for additional rear-side energy generation
- 132-cell configuration
- 2.0mm high-transmission AR-coated front glass
- Durable 2.0mm heat-strengthened rear glass
- 1500V DC maximum system voltage
- IP68 junction box with 3 bypass diodes
- 5400 Pa front and 2400 Pa rear static load
- Operating temperature from -40°C to +85°C
- High-strength alloy steel frame
Technical Specifications
| Specification | Details |
|---|---|
| Power Output | 740W |
| Cell Technology | N-Type HJT |
| Cell Configuration | 132 Cells |
| Module Type | Bifacial Dual Glass |
| Module Efficiency | 23.8% |
| Power Tolerance | 0 to +3% |
| Front Glass | 2.0mm High-Transmission AR-Coated Heat-Strengthened |
| Rear Glass | 2.0mm Heat-Strengthened |
| Dimensions | 2384 × 1303 × 35 mm |
| Weight | 40 kg |
| Junction Box | IP68, 1500V DC |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 35A |
| Operating Temperature | -40°C to +85°C |
| Front Static Load | 5400 Pa |
| Rear Static Load | 2400 Pa |
| Frame | High-Strength Alloy Steel |
Performance & Warranty
The Hyper-ion series offers strong anti-LID and anti-PID performance along with a low Pmax temperature coefficient of -0.24%/°C. Its bifacial design allows the rear side to capture additional sunlight, while the dual-glass construction provides durability in demanding environments.
It comes with a 15-year product warranty and 30-year linear power warranty for long-term performance confidence.
Why Choose Risen Hyper-ion 740W?
With 740W power output, 23.8% efficiency, N-Type HJT technology, and bifacial energy generation, this panel is an excellent choice for maximizing power production while making efficient use of installation space.
Ideal For
Commercial solar systems, industrial projects, utility-scale solar plants, and large-scale PV instal
