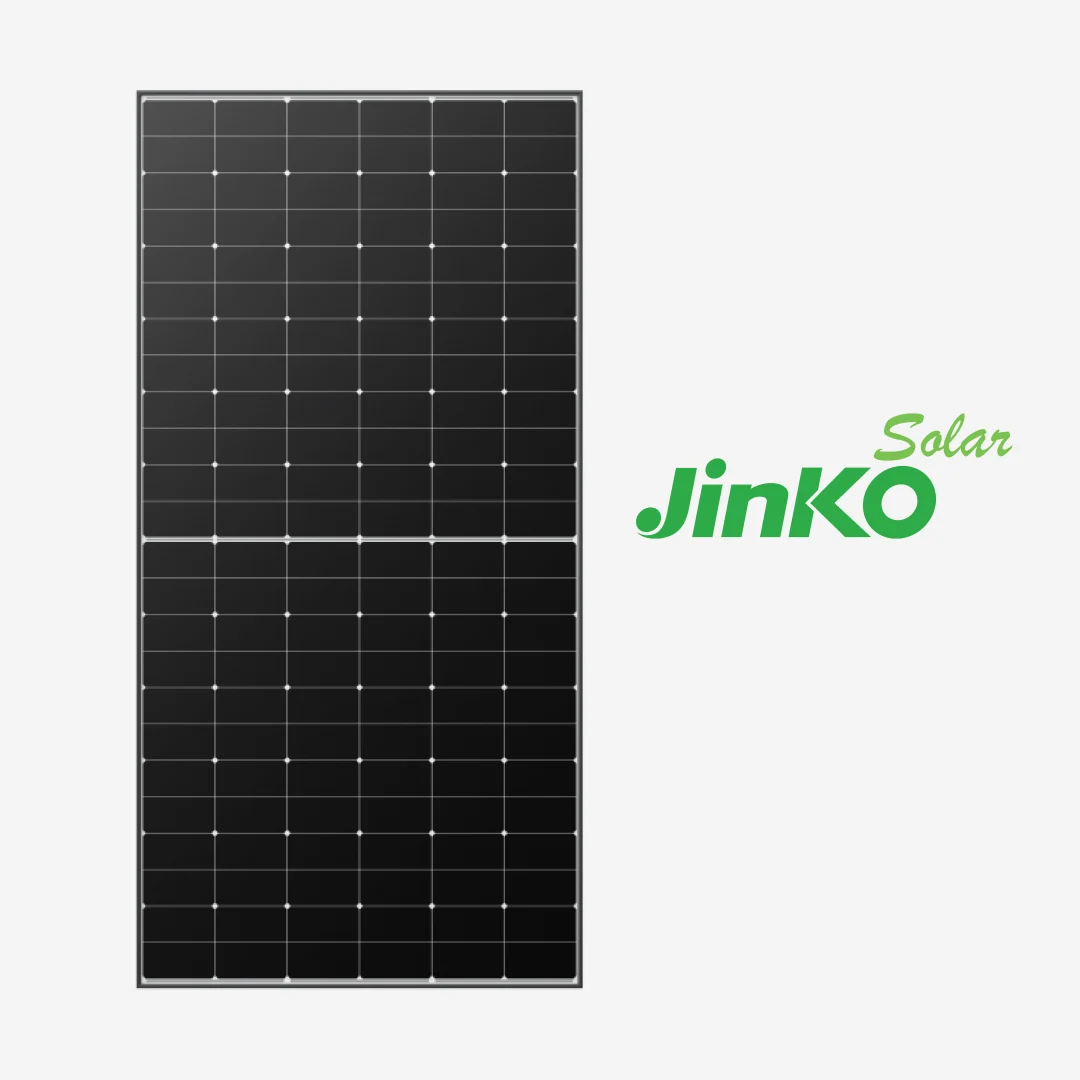

Jinko 585W N-Type Topcon Double Glass Solar Panel
₨ 22,343
Jinko 585W Tiger Neo N-Type Solar Panel
The Jinko Tiger Neo 585W is a high-performance N-Type monocrystalline bifacial solar panel designed for residential, commercial, industrial, and utility-scale solar installations. With SMBB technology, dual-glass construction, and high power output, it provides reliable energy generation and long-term performance.
Key Features
- 585W high power output
- N-Type monocrystalline cell technology
- 144 cells in a 6 × 24 configuration
- Bifacial dual-glass design
- Up to approximately 22.6% module efficiency
- SMBB technology for improved current collection and light utilization
- Hot 2.0 technology for enhanced reliability
- Strong PID resistance
- IP68-rated junction box
- 1500V DC maximum system voltage
- 5400 Pa snow load and 2400 Pa wind load
- Operating temperature from -40°C to +85°C
Technical Specifications
| Specification | Details |
|---|---|
| Power Output | 585W |
| Cell Technology | N-Type Monocrystalline |
| Cell Configuration | 144 Cells (6 × 24) |
| Module Type | Bifacial Dual Glass |
| Module Efficiency | Up to approximately 22.6% |
| Power Tolerance | 0 to +3% |
| Front Glass | 2.0mm Anti-Reflection Coated Glass |
| Back Glass | 2.0mm Heat-Strengthened Glass |
| Dimensions | 2278 × 1134 × 30 mm |
| Junction Box | IP68 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Operating Temperature | -40°C to +85°C |
| Wind Load | Up to 2400 Pa |
| Snow Load | Up to 5400 Pa |
Performance & Warranty
The Tiger Neo 585W uses SMBB and Hot 2.0 technology to support efficient power generation, improved current collection, and reliable module performance. Its N-Type cell technology and PID resistance also help reduce degradation under demanding operating conditions.
The panel comes with a 12-year product warranty and a 30-year linear power warranty, with an annual degradation rate of only 0.40% over 30 years.
Why Choose Jinko Tiger Neo 585W?
With high power output, N-Type technology, bifacial energy generation, and durable dual-glass construction, the Jinko Tiger Neo 585W is a reliable choice for solar systems focused on strong performance and long-term energy production.
Ideal For
Residential solar systems, commercial and industrial projects, utility-scale installations, and large solar power plants.
