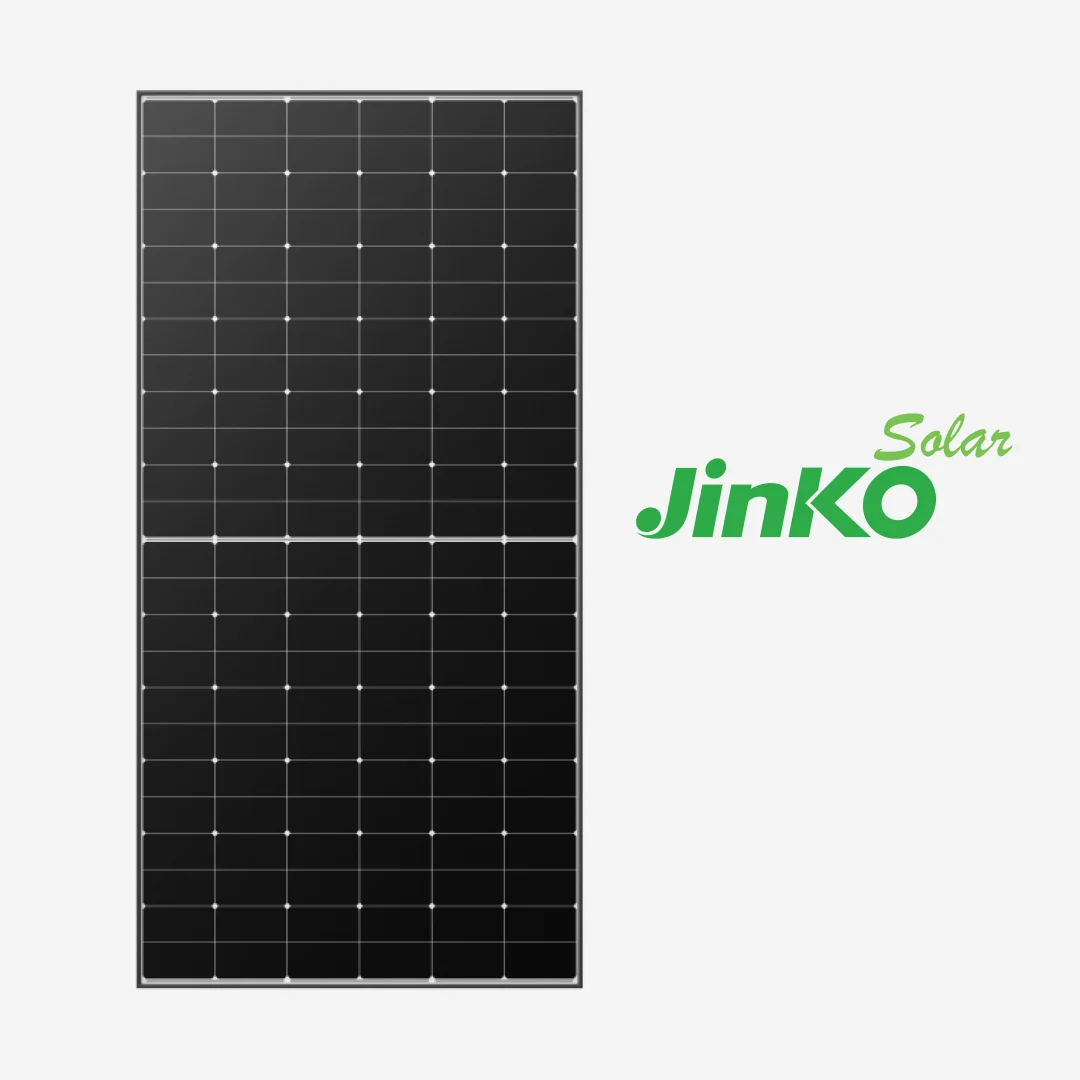

Jinko 645 W N-Type Topcon Double Glass Solar Panel
₨ 25,284
Jinko 645W Tiger Neo N-Type Solar Panel
The Jinko Tiger Neo 645W Solar Panel is a high-power N-Type TOPCon bifacial module designed for efficient and reliable solar energy generation. With dual-glass construction, high bifaciality, and anti-glare technology, it is suitable for residential, commercial, industrial, and utility-scale solar projects.
Key Features:
- 645W high power output
- N-Type Monocrystalline TOPCon technology
- Bifacial dual-glass design with 85 ± 5% bifaciality
- Module efficiency of approximately 23.9%
- Anti-glare front glass for reduced glare
- Enhanced resistance to PID, LID, LeTID, and UV degradation
- 1500V DC maximum system voltage
- IP68-rated junction box
- High load resistance up to 5400 Pa front and 2400 Pa rear
Technical Specifications:
| Specification | Details |
|---|---|
| Power Output | 645W |
| Cell Technology | N-Type Monocrystalline TOPCon |
| Cell Configuration | 264 Cells (66 × 4) |
| Module Type | Bifacial Dual Glass |
| Bifaciality | 85 ± 5% |
| Module Efficiency | Approx. 23.9% |
| Power Tolerance | 0 to +3% |
| Front Glass | 2.0mm Anti-Glare Glass |
| Back Glass | 2.0mm Heat Strengthened Glass |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.5 kg |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 35A |
| Junction Box | IP68 |
| Operating Temperature | -40°C to +70°C |
| Front Static Load | 5400 Pa |
| Rear Static Load | 2400 Pa |
Performance & Warranty:
The Jinko Tiger Neo 645W provides strong low-light performance and improved resistance to common degradation factors. It comes with a 12-year product warranty and 30-year linear power warranty, with 1% first-year degradation and 0.35% annual degradation thereafter.
Why Choose Jinko Tiger Neo 645W?
With high power output, N-Type TOPCon technology, bifacial energy generation, anti-glare glass, and durable dual-glass construction, this panel is a strong choice for long-term and high-performance solar installations.
Ideal For:
Residential, commercial, industrial, utility-scale solar projects, and installations where reduced
