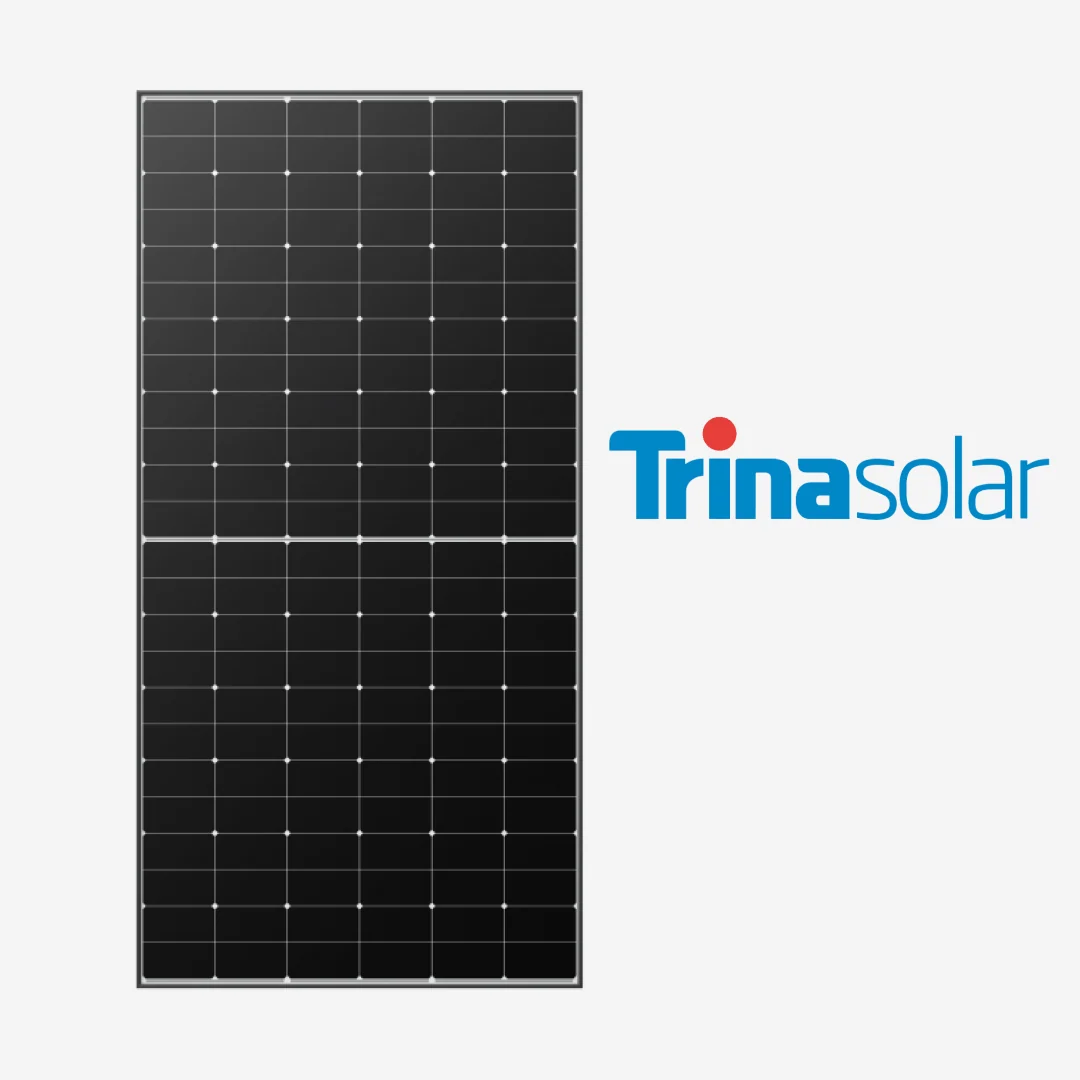

Trina 720 W N-Type Topcon Double Glass Solar Panel
₨ 27,720
Trina Vertex N-Type i-TOPCon 720W Bifacial Dual Glass Solar Panel
The Trina Vertex N-Type i-TOPCon 720W Solar Panel is a high-power bifacial module designed for efficient and reliable solar energy generation. With up to 23.2% efficiency, 80 ± 5% bifaciality, and durable dual-glass construction, it is well suited for large residential, commercial, industrial, and utility-scale solar projects.
Key Features:
- 720W high power output
- Advanced N-Type i-TOPCon monocrystalline technology
- Up to 23.2% module efficiency
- Bifacial dual-glass design with 80 ± 5% bifaciality
- Up to 10–20% additional rear-side power depending on installation and albedo
- Half-cut cell technology for improved reliability
- Excellent low-irradiance performance
- Low Pmax temperature coefficient of -0.29%/°C
- Resistance against PID, LID, LeTID, salt, ammonia, and sand
- 1500V DC maximum system voltage
- IP68-rated junction box
- Durable anodized aluminium alloy frame
Technical Specifications:
| Specification | Details |
|---|---|
| Model | TSM-NEG21C.20 |
| Maximum Power | 720W |
| Cell Technology | N-Type i-TOPCon Monocrystalline |
| Number of Cells | 132 |
| Module Efficiency | 23.2% |
| Vmp | 41.3V |
| Imp | 17.44A |
| Voc | 49.4V |
| Isc | 18.49A |
| Power Tolerance | 0 to +5W |
| Bifaciality | 80 ± 5% |
| Dimensions | 2384 × 1303 × 33 mm |
| Weight | 38.3 kg |
| Front Glass | 2.0mm AR Coating Heat Strengthened Glass |
| Back Glass | 2.0mm Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 |
| Connector | MC4 EVO2 / TS4 Plus / TS4 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 35A |
| Operating Temperature | -40°C to +85°C |
| Pmax Temperature Coefficient | -0.29%/°C |
| Voc Temperature Coefficient | -0.24%/°C |
| Isc Temperature Coefficient | +0.04%/°C |
| NOCT | 43 ± 2°C |
Performance & Warranty:
The Trina Vertex 720W is designed for strong performance in different operating conditions, with low-light capability, a low temperature coefficient, and resistance against common degradation factors. It comes with a 12-year product warranty and 30-year power warranty, with 1% first-year degradation and 0.4% annual degradation.
Why Choose Trina Vertex 720W?
With high 720W output, advanced N-Type i-TOPCon technology, bifacial energy generation, and durable dual-glass construction, the Trina Vertex 720W is an excellent choice for maximizing solar generation while making efficient use of installation space.
Ideal For:
Commercial solar systems, industrial projects, utility-scale solar farms, and large high-capacity solar installations.
