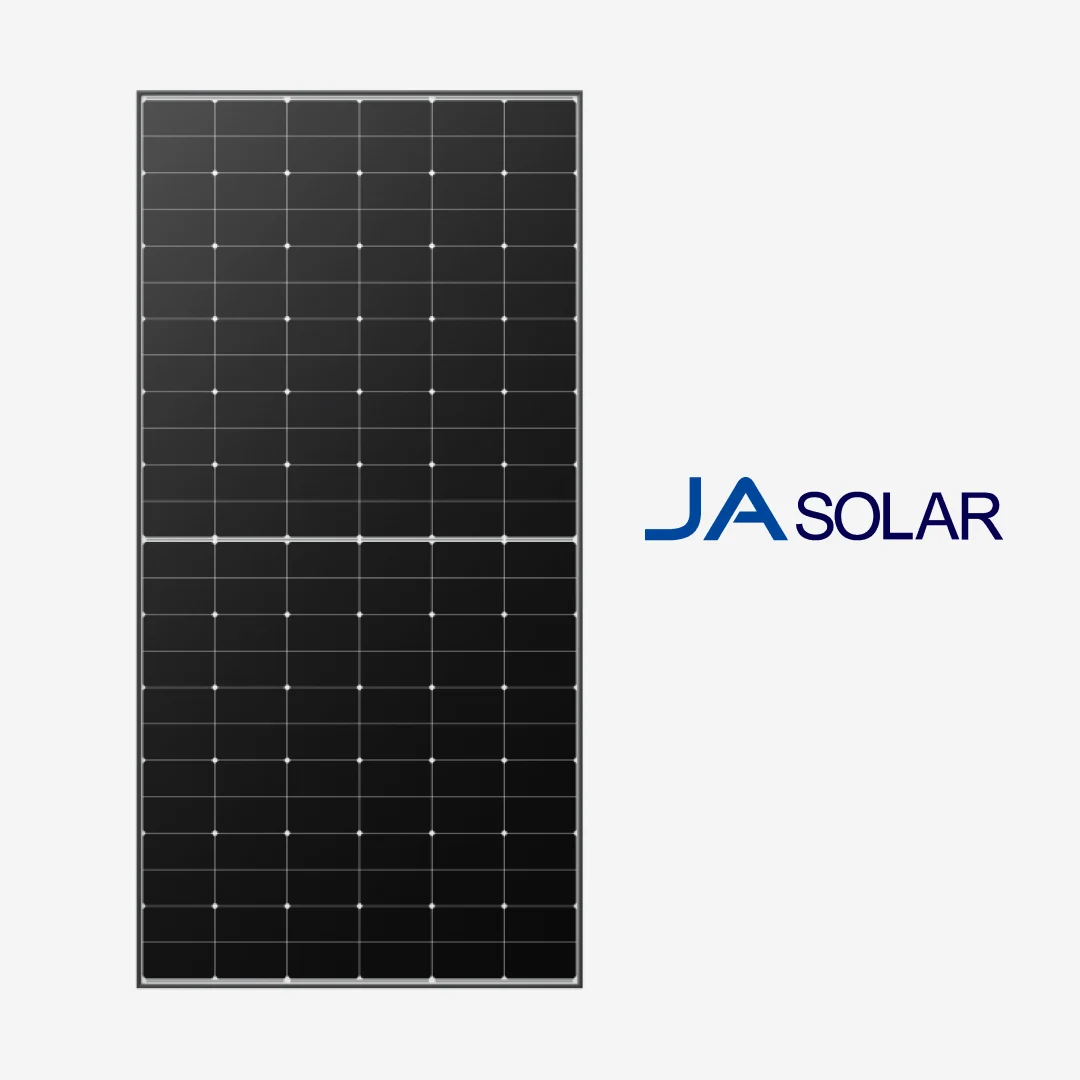

JA 625 W N-Type Topcon Double Glass Solar Panel
₨ 24,218
JA Solar 625W N-Type Bifacial Double Glass Solar Panel
The JA Solar DeepBlue 4.0 625W N-Type Solar Panel is a high-performance bifacial module designed for efficient and reliable solar energy generation. With 625W power output, up to 22.4% efficiency, Mono-16BB cells, and double-glass construction, it is an excellent choice for modern commercial and large-scale solar installations.
Key Features:
- 625W high power output
- Advanced N-Type technology with very low LID
- Mono-16BB monocrystalline cell technology
- Bifacial double-glass design
- Up to 22.4% module efficiency
- 80 ± 10% bifaciality for additional rear-side energy generation
- SMBB technology for improved power generation and LCOE
- Better low-light performance
- Improved temperature performance
- 5400 Pa front and 2400 Pa rear mechanical load
- IP68 junction box with 3 bypass diodes
- 1500V DC maximum system voltage
Technical Specifications:
| Specification | Details |
|---|---|
| Model | JAM78D40-625/MB |
| Type | N-Type Bifacial Double Glass |
| Maximum Power | 625W |
| Cell Type | Mono-16BB |
| Number of Cells | 156 (6 × 26) |
| Module Efficiency | 22.4% |
| Voc | 55.49V |
| Isc | 14.36A |
| Vmp | 46.37V |
| Imp | 13.48A |
| Power Tolerance | 0 to +5W |
| Bifaciality | 80 ± 10% |
| Dimensions | 2465 ± 2 × 1134 ± 2 × 35 ± 1 mm |
| Weight | 34.6 kg |
| Front Glass | 2.0mm |
| Back Glass | 2.0mm |
| Junction Box | IP68, 3 Diodes |
| Connector | QC 4.10-35I / MC4-EVO2A |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Operating Temperature | -40°C to +85°C |
| Mechanical Load | 5400 Pa Front / 2400 Pa Back |
| NOCT | 45 ± 2°C |
| Fire Performance | UL Type 29 |
| Pmax Temperature Coefficient | -0.300%/°C |
| Voc Temperature Coefficient | -0.260%/°C |
| Isc Temperature Coefficient | +0.046%/°C |
Performance & Warranty:
The JA Solar 625W panel is designed for stable energy generation in different operating conditions, including low-light and higher-temperature environments. It comes with a 12-year product warranty and 30-year linear power output warranty, with 1% first-year degradation and 0.4% annual degradation thereafter.
Why Choose JA Solar 625W?
With high power output, N-Type technology, bifacial energy generation, SMBB/16BB cell technology, and durable double-glass construction, the JA Solar 625W is a reliable option for maximizing solar generation and long-term system performance.
Ideal For:
Commercial, industrial, utility-scale, distributed solar systems, and large-capacity solar installations.
