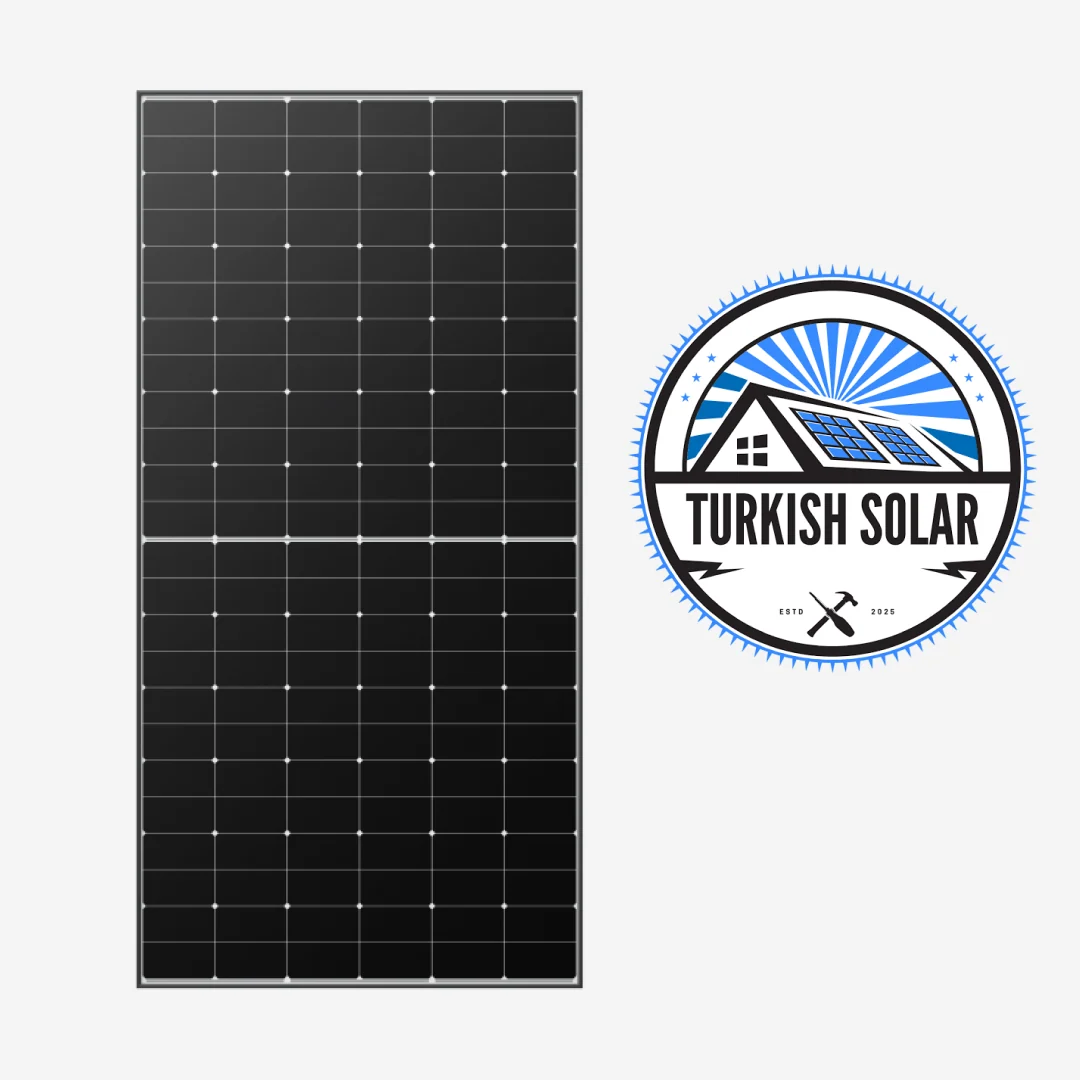

Turkish 585 W N-Type Topcon Double Glass Solar Panel
₨ 21,937
Turkish Solar 585W N-Type Bifacial Dual Glass Solar Panel
The Turkish Solar 585W N-Type Solar Panel combines high-efficiency N-Type monocrystalline technology with a bifacial dual-glass design for reliable solar energy generation. With up to 22.84% module efficiency, 144 half-cut cells, and durable construction, it is a practical choice for ground-mounted and distributed solar projects.
Key Features:
- 585W high power output
- Advanced N-Type monocrystalline half-cut cell technology
- Up to 22.84% module efficiency
- Bifacial dual-glass design for additional rear-side energy generation
- 144 half-cut cells in a 6 × 24 configuration
- Positive power tolerance of 0 to +5W
- 5–10% rear-side power gain under suitable conditions
- High-transmission, low-iron, semi-tempered glass
- IP68-rated junction box
- 5400 Pa positive and 2400 Pa negative mechanical load capacity
- 1500V DC maximum system voltage
Technical Specifications:
| Specification | Details |
|---|---|
| Model | RS6-585NBG-E3 |
| Type | Bifacial Module with Dual Glass |
| Maximum Power | 585W |
| Cell Type | Mono N-Type |
| Number of Cells | 144 (6 × 24) Half-Cut |
| Module Efficiency | 22.84% |
| Vmp | 44.16V |
| Imp | 13.36A |
| Voc | 53.41V |
| Isc | 14.07A |
| Power Tolerance | 0 to +5W |
| Rear-Side Power Gain | 5–10% |
| Dimensions | 2278 × 1134 × 30 mm |
| Weight | 31.7 kg |
| Front / Back Glass | 2mm + 2mm High Transmission, Low Iron, Semi-Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Output Cable | 4mm², +200mm / -300mm or Customized |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Fire Performance | IEC Class C |
| Operating Temperature | -40°C to +85°C |
| Mechanical Load | 5400 Pa Positive / 2400 Pa Negative |
Why Choose Turkish Solar 585W?
The Turkish Solar 585W offers a strong combination of high power output, N-Type technology, bifacial energy generation, and durable dual-glass construction. Its high efficiency and robust design make it suitable for dependable long-term solar installations.
Ideal For:
Ground-mounted solar power plants, distributed solar projects, commercial installations, and large-scale solar systems.
