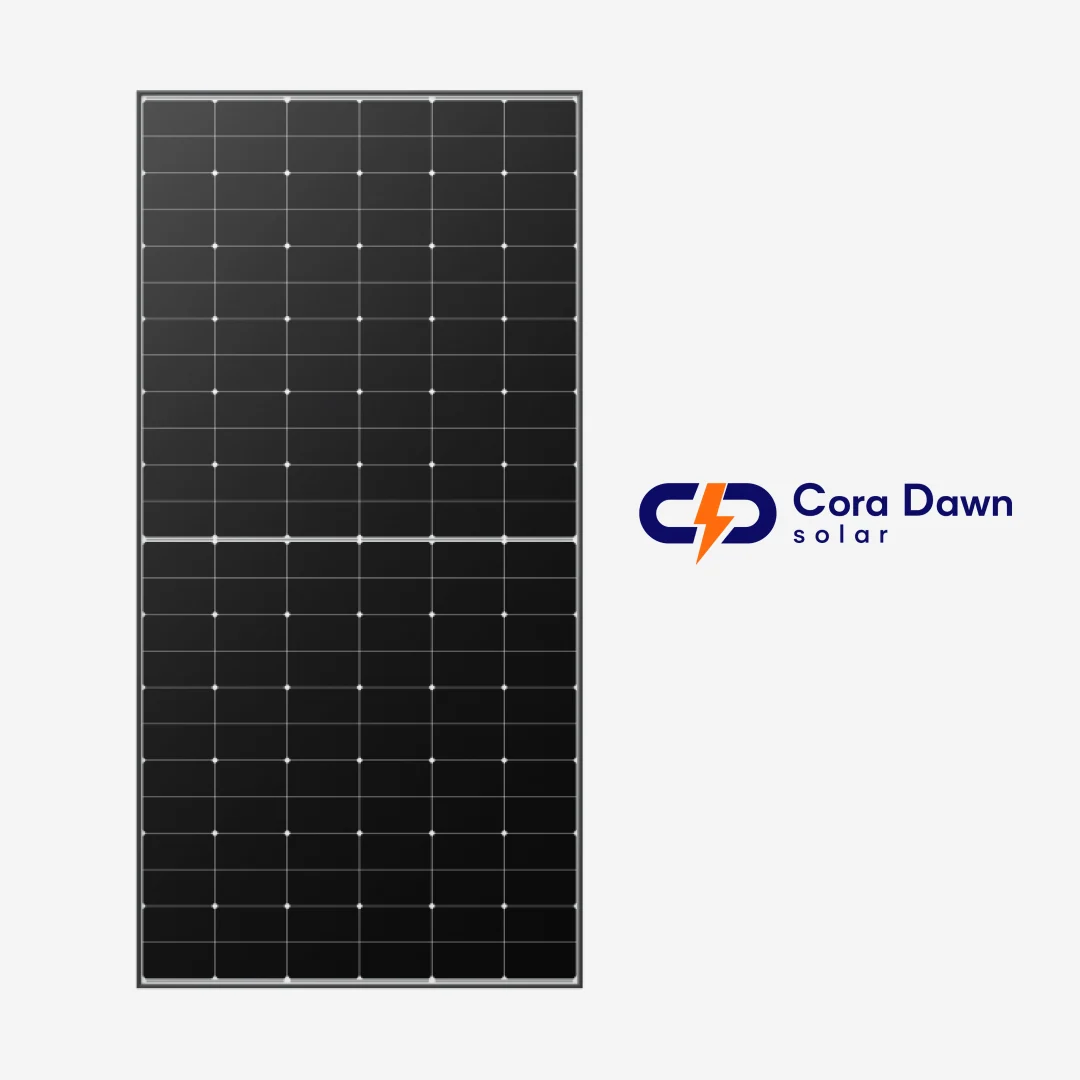

Cora Dawn 650 W N-Type Topcon Double Glass Solar Panel
₨ 26,235
Cora Dawn 650W N-Type BC Bifacial Double Glass Solar Panel
The Cora Dawn 650W N-Type BC Solar Panel combines advanced BC cell technology with a high-efficiency bifacial double-glass design. With up to 24.1% module efficiency, 70 ± 5% bifaciality, and durable construction, it is designed for reliable solar energy generation across residential, commercial, industrial, and large-scale projects.
Key Features:
- 650W high power output
- N-Type BC cell technology
- Up to 24.1% module efficiency
- 144 cells in a 6 × 24 configuration
- Bifacial double-glass design with 70 ± 5% bifacial factor
- Low Pmax temperature coefficient of -0.26%/°C
- Low first-year power attenuation of ≤1%
- Annual attenuation of ≤0.35% from years 2–30
- Strong resistance to salt spray, ammonia, dust, and harsh outdoor conditions
- 5400 Pa front and 2400 Pa rear mechanical load capacity
- IP68 junction box with 3 bypass diodes
- 1500V DC maximum system voltage
Technical Specifications:
| Specification | Details |
|---|---|
| Model | CD-G640-670 MCH72Dw 2382 Series+ |
| Maximum Power | 650W |
| Cell Type | N-Type BC |
| Module Type | Bifacial Double Glass |
| Number of Cells | 144 (6 × 24) |
| Module Efficiency | 24.1% |
| Voc | 54.00V |
| Isc | 15.06A |
| Vmp | 45.30V |
| Imp | 14.35A |
| Bifacial Factor | 70 ± 5% |
| Power Tolerance | 0 to +3% |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.3 kg ±3% |
| Front / Back Glass | 2.0 + 2.0mm Coated Semi-Tempered Glass |
| Frame | Anodized Aluminum |
| Junction Box | IP68, 3 Bypass Diodes |
| Connector | MC4 Compatible / MC4-EVO2A |
| Maximum System Voltage | DC1500V |
| Maximum Series Fuse | 30A |
| Operating Temperature | -40°C to +85°C |
| Pmax Temperature Coefficient | -0.26%/°C |
| Voc Temperature Coefficient | -0.22%/°C |
| Isc Temperature Coefficient | +0.05%/°C |
| Maximum Static Load | Front 5400 Pa / Back 2400 Pa |
| Hail Test | 25mm at 23m/s |
| Fire Rating | IEC Class A |
| Protection Class | Class II |
Performance & Warranty:
The Cora Dawn 650W is designed for stable performance in high-temperature and demanding outdoor environments. It includes a 15-year product warranty and 30-year linear power warranty, with first-year power attenuation of ≤1% and annual attenuation of ≤0.35% from years 2–30.
Why Choose Cora Dawn 650W?
With 650W power output, 24.1% efficiency, N-Type BC technology, bifacial energy generation, and durable double-glass construction, the Cora Dawn 650W is a strong option for maximizing solar production while maintaining long-term reliability.
Ideal For:
Residential, commercial, industrial, distributed solar systems, and large-scale ground-mounted solar projects.
